The Detail Of IP68 Waterproof Connector

Number of Poles

2-5Pin

Operating current

32A

Operating voltage

450V

Operating rating

-40℃ - 105℃

Connector housing Cable gland

PA66 UL94-V2

Wire cross-section

0.5mm2 - 4.0mm2

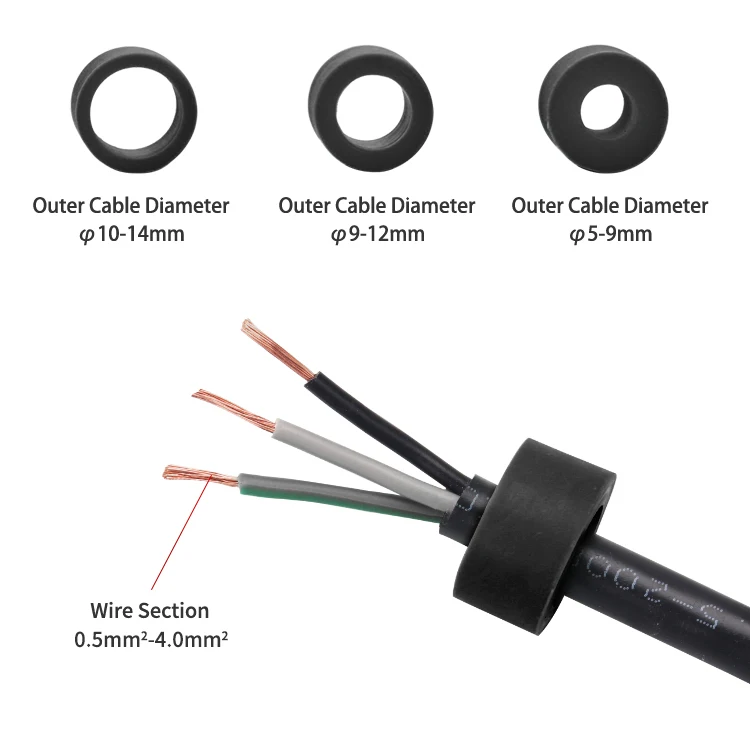

Cable Diameter

5-9mm;9-12mm;10-14mm

Sealing

Silicone

Materials properties

Halogen Free

Contacts

Nickel-plated Brass

Protection against solid/water (IP)

IP68(4m, 365 days)

Application

Outdoor lighting/Garden lights
